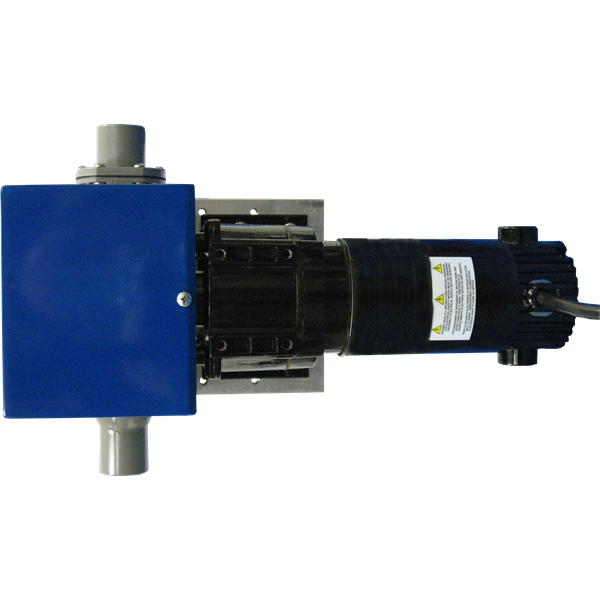

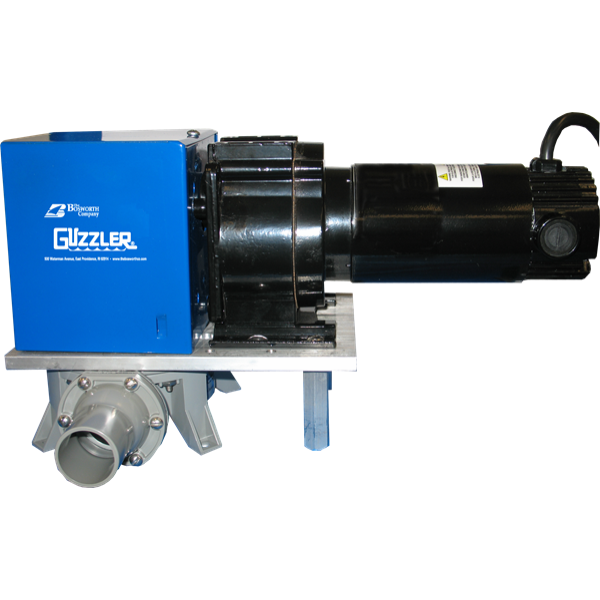

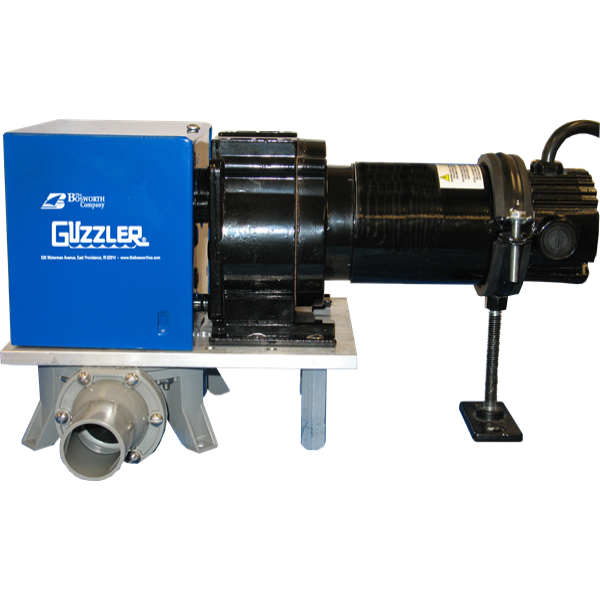

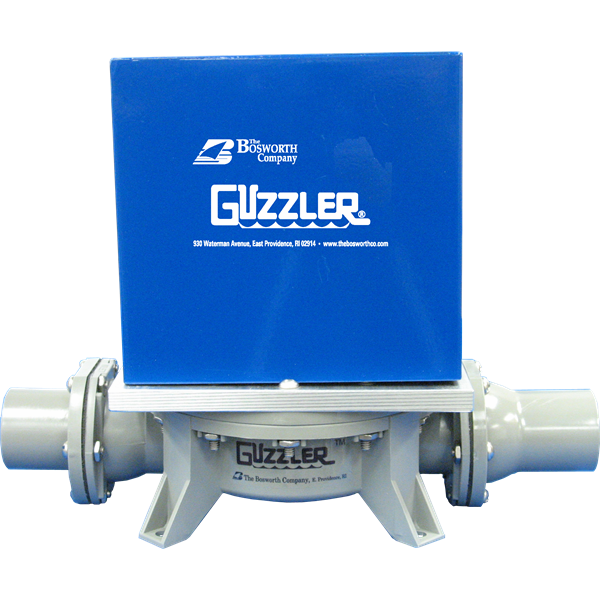

12 VDC Guzzler motorized pump. Up to 22 feet of lift. Accommodates 1-1/4" to 2" hose.
Features
- Self-priming; runs wet or dry
- Range of fixed-speed, 12 VDC motors; from 30 to 64 rpm
- Average current draw: 6-8 amps
- 4.3 - 8.8 gpm, depending on choice of motor
- Up to 20 feet of lift/head, depending on choice of motor
- Accommodates 1-1/4" to 2" hose
- Duckbill valves permit installation in any orientation
- Duckbill valves recommended for sanitation applications. (Also available with flapper valves.)
Performance Dependent on configuation
| Max Pressure | |
| Lift/Head |
|
| Capacity | |
| Volume per stroke | 0.55 qt / 0.52 l |
| Max Service Temp | 212° F / 100° C |
