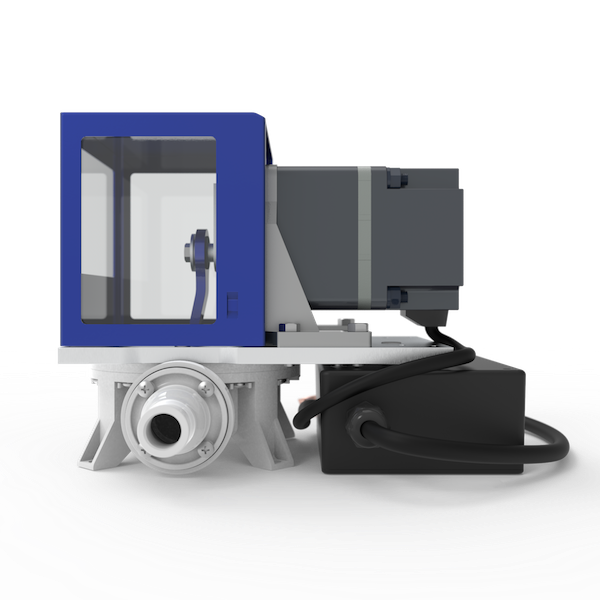

Guzzler® GE-0404N

NEW! Efficient, compact 24V Brushless DC motor. FDA-approved materials for wetted components. Use with 3/4" to 1-1/4" size hoses. Accommodates up to 400 taps. AVAILABLE NOW!

Features

  • NEW! Efficient 100 Watt, 24 VDC Brushless motor runs up to 50 hours on 2-12 VDC 60-amp hour batteries.
  • Up to 28 in Hg vacuum on well-managed sugarbush lines
  • FDA-approved materials for all components in contact with sap
  • Supports up to 400 taps; 6.6 GPM (0.88 cfm)
  • New "See-Thru" pump guard for ease of diaphragm inspection.
  • NO RELEASER REQUIRED; runs wet or dry
  • Accommodates 3/4" to 1" mainline
  • Ships with spare diaphragm

Performance Dependent on configuation

Max Pressure

Lift/Head


Capacity

Volume per stroke0.44 qt / 0.42 l
Max Service Temp220° F / 104° C

Downloads

Product Specification
Operator's Manual (English)
Operator's Manual (French)

Customize & Buy

Part Numbers / Price

Model

GE-0404N-071-58-4141-TK

SKU



MSRP

$ 1,301.45

Store Locator
Replacement Parts

Speed Control

Valves

Umbrella (Silicone)

Diaphragm

Buna-N (Nitrile) (FDA-approved material)
Silicone (FDA-approved material)

Clevis Button Assembly

Natural (FDA-approved) Delrin

Clamp Ring

Motor Mounting Plate

Inlet Hose Connection

3/4" NPT Tapped (F)
3/4" NPT Threaded (M)
1" Smooth
1" NPT Threaded (M)
1-1/8" Barbed

Outlet Hose Connection

3/4" NPT Tapped (F)
3/4" NPT Threaded (M)
1" Smooth
1" NPT Threaded (M)
1-1/8" Barbed

Motor Options

24VDC, rpm: 60, torq: 152 in-lbs | psi: 13, head (ft): 23

Pre-Pak Accessories

Not selected
Hose, Cuffs, Clamps

Accessories

Service Kit
Service Kit
