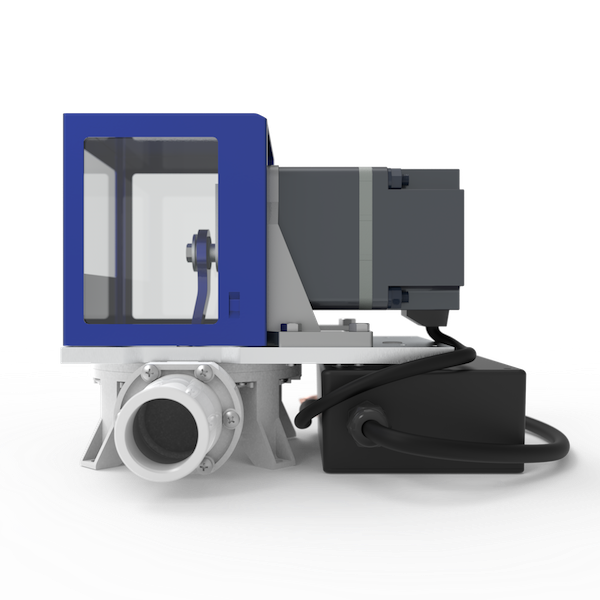

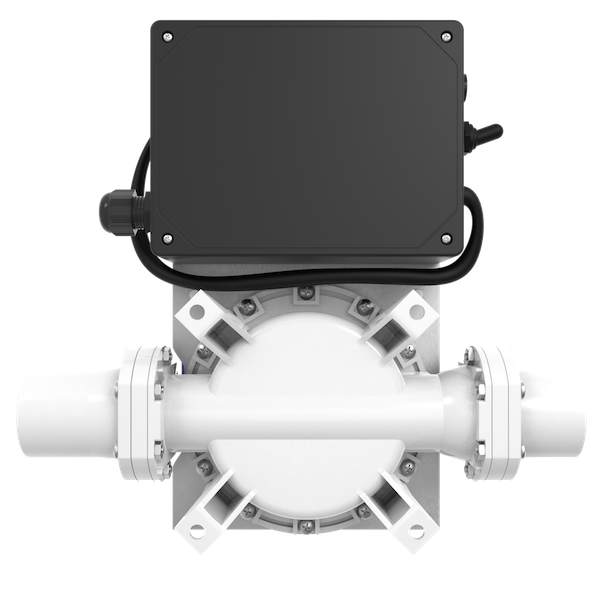

Guzzler® GE-0504N

NEW! Compact 24V Brushless DC Motorized Guzzler Pump. FDA-approved materials for wetted components. Use with 1-1/4" to 2" hose sizes. Accommodates up to 400 taps. AVAILABLE NOW!

Features

  • Efficient 100 Watt, 24V Brushless DC motor can run for up to 50 hours on 2-12 VDC 60-amp hour batteries
  • FDA-approved components for parts in contact with sap.
  • Up to 28 in Hg vacuum on well-managed sugarbush lines
  • Supports up to 400 taps; 8.3 GPM (1.1 cfm)

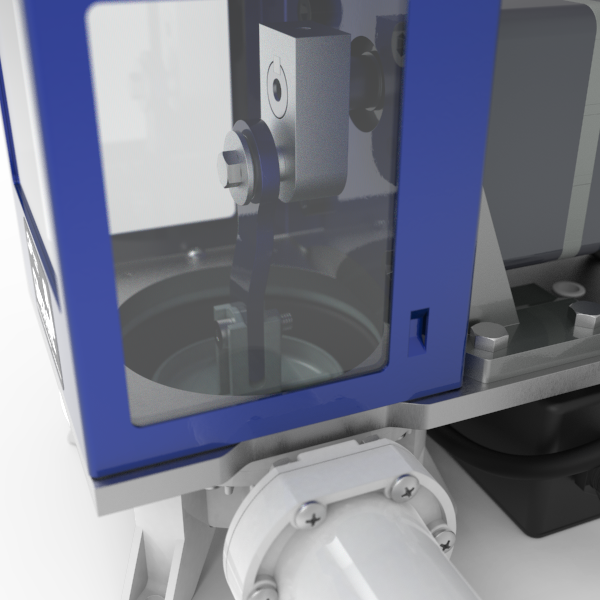

  • New "See-Thru" pump guard for ease of diaphragm inspection
  • NO RELEASER REQUIRED; runs wet or dry
  • Accommodates 1-1/4" mainline
  • Ships with spare diaphragm

Performance Dependent on configuation

Max Pressure Range - psi / - bar
Lift/Head Range - ft / - m
Capacity Range - gpm / - lpm
Volume per stroke qt / l
Max Service Temp° F / ° C

Downloads

Product Specification
Operator's Manual (English)
Operator's Manual (French)

Customize & Buy

Part Numbers / Price

Model

GE-0504N-071-58-8080-TK

SKU



MSRP

$ 1,312.85

Store Locator
Replacement Parts

Speed Control

Valves

Umbrella (Silicone)

Diaphragm

Buna-N (Nitrile) (FDA-approved material)
Silicone (FDA-approved material)

Clevis Button Assembly

Natural (FDA-approved) Delrin

Clamp Ring

Motor Mounting Plate

Inlet Hose Connection

1-1/4" NPT Tapped (F)
1-1/2" Smooth
1-1/2" NPT Threaded (M)
2" Smooth

Outlet Hose Connection

1-1/4" NPT Tapped (F)
1-1/2" Smooth
1-1/2" NPT Threaded (M)
2" Smooth

Motor Options

24VDC, rpm: 60, torq: 152 in-lbs | psi: 13, head (ft): 23

Pre-Pak Accessories

Not selected
Hose, Cuffs, Clamps

Accessories

Service Kit
Service Kit
Hose
Hose
Hose end cuff
Hose end cuff
Strainer
Strainer
